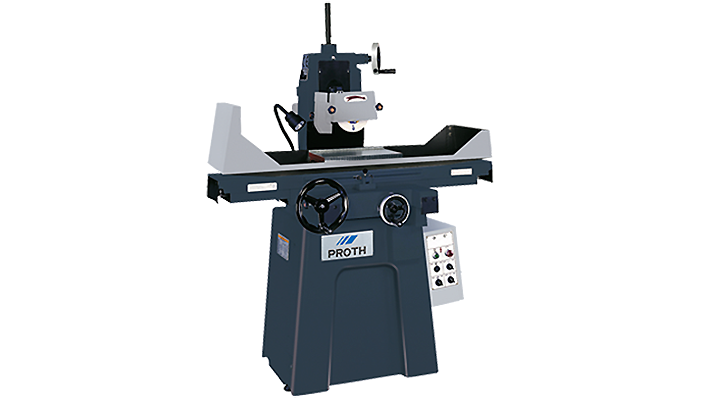

PROTH PSGS1545 Surface Grinder

PROTH PSGS1545 Surface Grinder

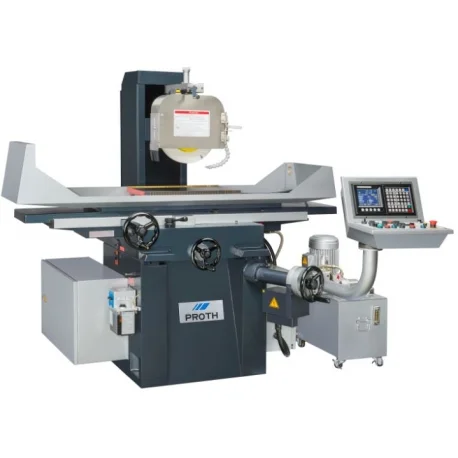

 Proth PSGS3060 AH Surface Grinder

Proth PSGS3060 AH Surface Grinder

Specifications



General Capacity

Table Size

Spindle Center Height from table

Travel (Cross)

Travel (Saddle)

Longitudinal Movement

Hydraulic Table Speed

Cross Movement

Intermittent cross feed approx.

Continuous cross feed approx.

Vertical Downfeed

Rapid Traverse

Grinding Wheel Specifications

Wheel Size (Dia x Width x Bore)

Spindle Speeds

Spindle Motor

PSGS 1545M

150 x 450mm

400mm

160mm

475mm



Manual



Manual

Manual



Manual



180x13x31.75mm

3600 rpm

2 HP

PSGS 2550AH

250 x 500mm

500mm

280mm

500mm



1 - 25 m/min



0.1 - 10 mm/feed

1000 mm/min



200 mm/min



180x13x31.75mm

3600 rpm

3 HP

PSGS 3060AH

300 x 600mm

500mm

340mm

600mm



1 - 25 m/min



0.1 - 10 mm/feed

1000 mm/min



200 mm/min



180x13x31.75mm

3600 rpm

3 HP
