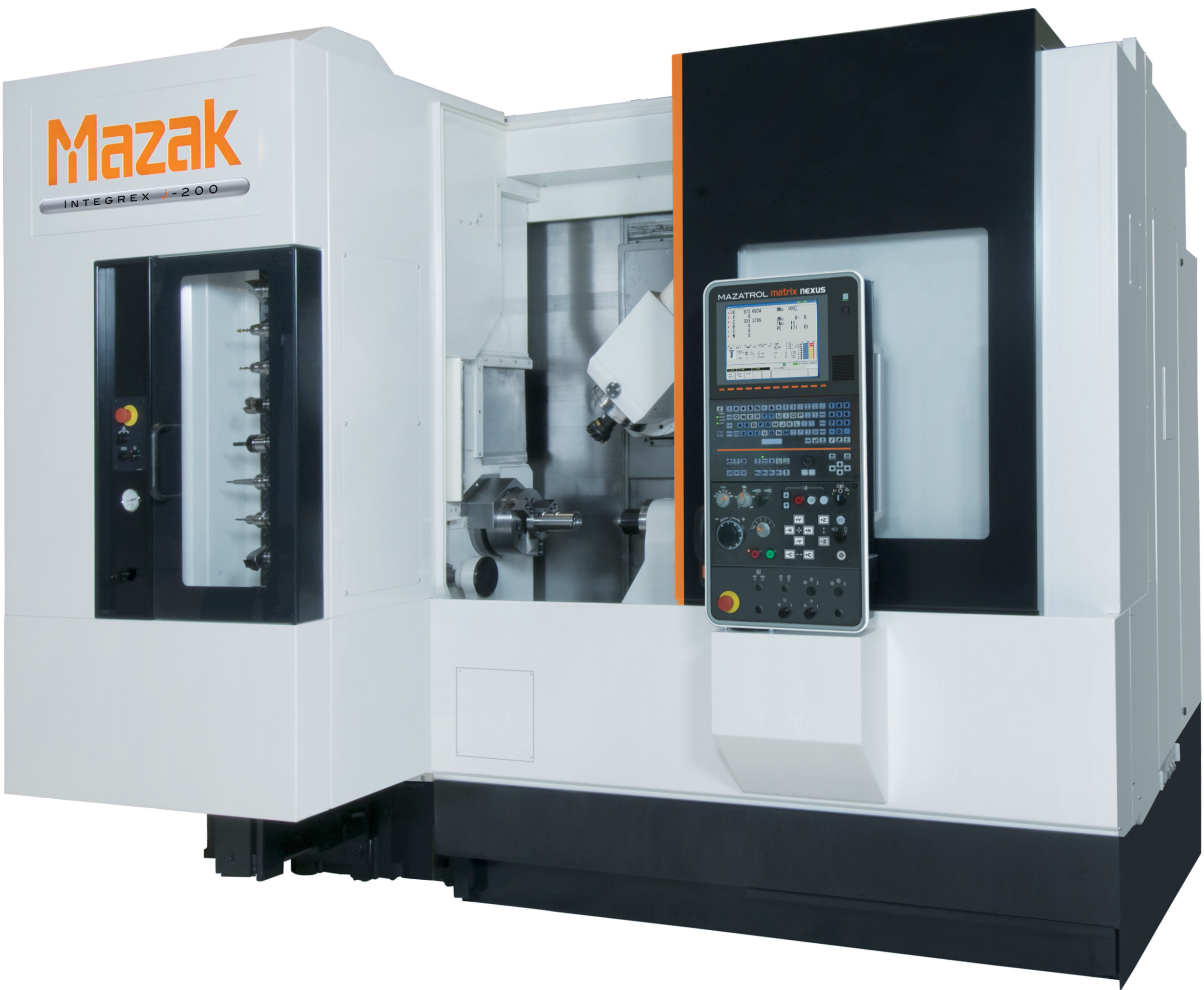

Mazak INT-j200: 5-axis cnc lathe

Mazak INT-j200: 5-axis cnc lathe


  • Simplified multi-tasking operation by INTELLIGENT functions.
  • Multi-tool holder reduces tool change time.
  • Roller guides utilized on full axes.
  • High efficient mill turning.
  • Complex machining by B/C-axis positioning.
  • Large machining area provides high productivity with minimum tool interference.
  • Arm-less 20MG (OP:36/72MG)


Max machining diameter  Ø530mm
Max machining length      500mm
Chuck Size                        8 inch
Turning Spindle                 5,000rpm, 11kW (15HP)
Milling Spindle                   12,000rpm, 7.5kW (10HP)
X-Axis Travel                      450mm
Y-Axis Travel                      ±100mm
Z-Axis Travel                      550mm
B-Axis Travel                      -30º - 190º (5º minimum increment)
