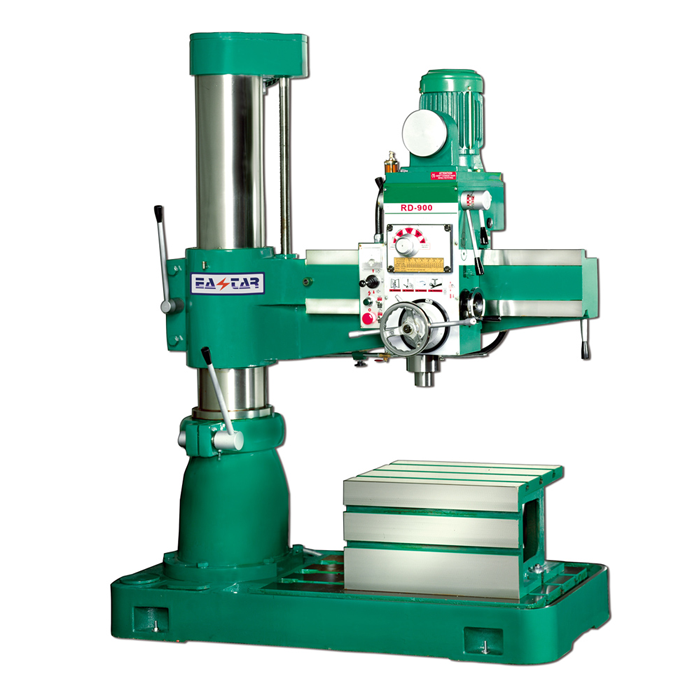

EASTAR RD-900 Radial Drill

EASTAR RD-900 Radial Drill

Specifications

Model

Drilling (Steel / Cast Iron)

Tapping (Steel / Cast Iron)

Boring (Steel / Cast Iron)

Spindle Speed

Column Diameter

Min Distance, spindle center to column

Max Distance, spindle center to column

Horizontal travel of headstock

Min Distance, base to spindle

Max Distance, base to spindle

Effective area of table

Main Drive motor

Weight

RD-750

Dia 38mm / Dia 50mm

Dia 19mm / Dia 25mm

Dia 75mm / Dia 105mm

88 ~ 1500 rpm

210mm

290mm

775mm

485mm

282mm

1110mm

550 x 405 x 315mm

2HP

1200KG

For more information, visit the Eastar website.
