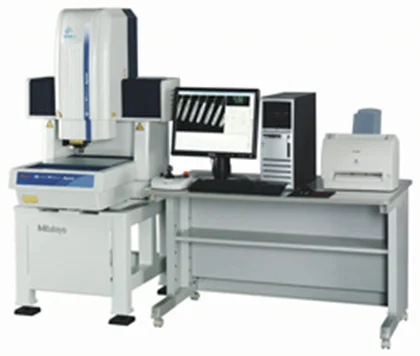

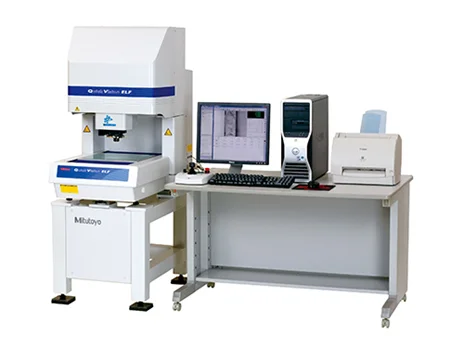

Mitutoyo Quick Vision Machines

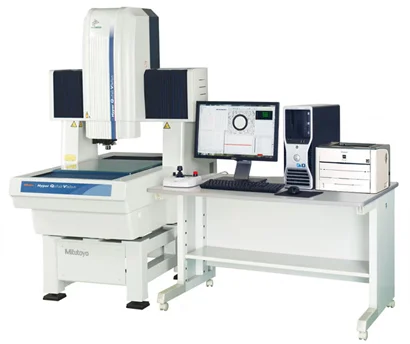

Fixed Bridge and Table Configuration

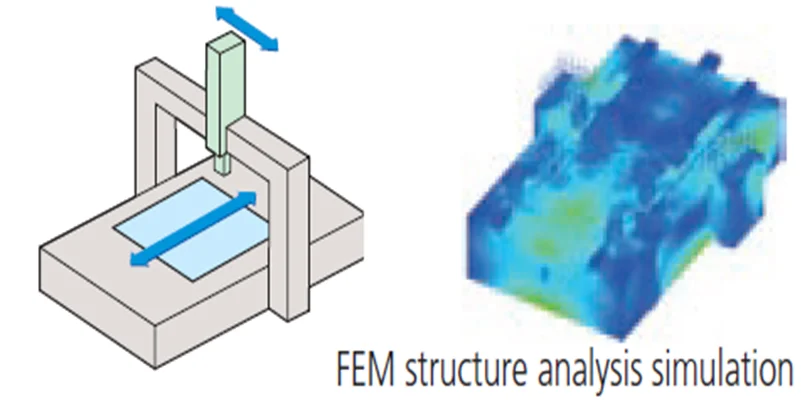

• Structure Design is optimized through the use of Finite Element Method
• Excellent Rigidity, to minimized deformation
• Resistant to deformation during movement thereby better accuracy+/- 1.5 + 3L/1000 um.

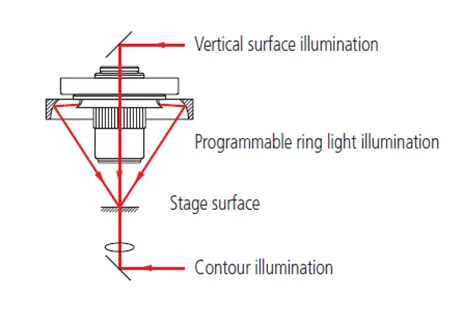

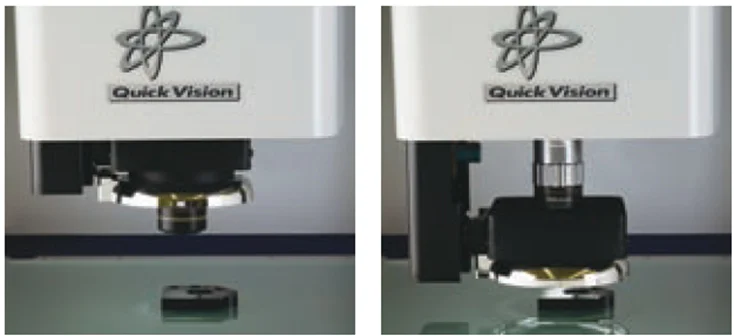

Highly Functional and Adaptable Illumination Unit

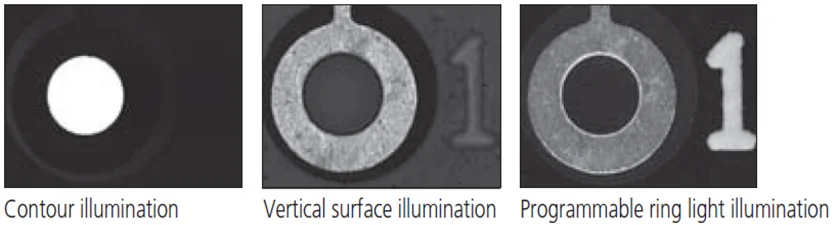

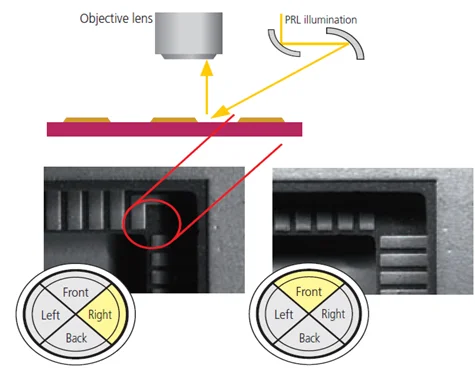

Programmable Ring Light (PRL)

• Four Quadrant illumination Front, Back, Left and Right controlled independently
• Change light incidence angle 30 to 80 degrees to enhance incline edge detection
• Can be configure for highly variable lighting

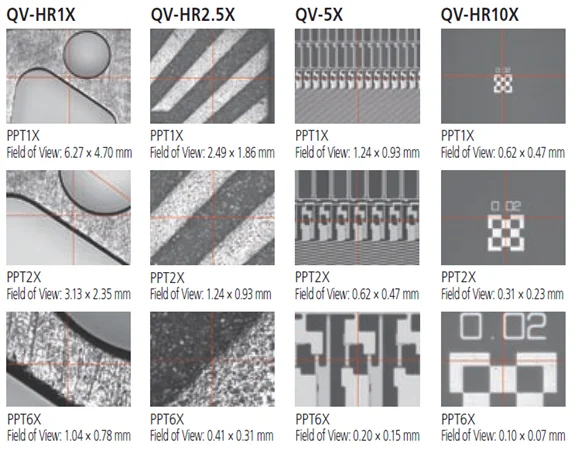

High Magnification with Programmable Power Turret

• Magnification up to 4300X on monitor
• Permits 3 steps or 4 steps power turret magnification

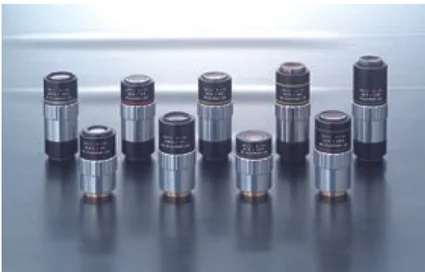

• Objective lens line up 0.5X to 25X

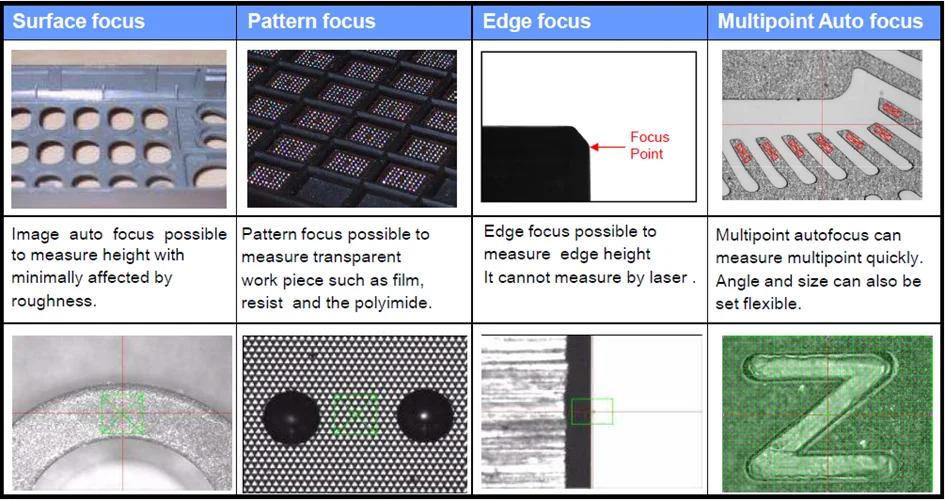

High Performance Multi-Auto Focus

• Surface focus use for stable height measurement
• Pattern Focus ideal for low contrast transparent workpiece such as film, glass and mirrored surfaces
• Edge focus for champered and corner radius
• Multipoint auto focus obtain multiple height information

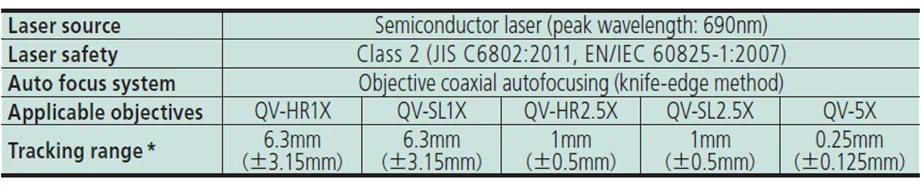

Tracking Auto Focus (TAF)

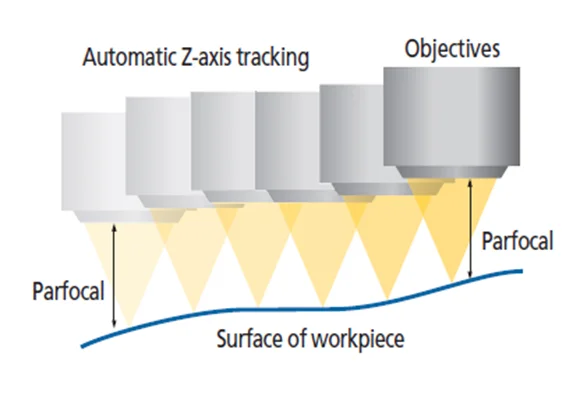

• Continuously focuses on the surface, adjusting its height to follow the contour of workpiece surface
• Increase measurement throughputsince to need to focus during movement
